Linear mixed models

Stata’s mixed-models estimation makes it easy to specify and to fit multilevel and hierarchical random-effects models.

To fit a model of SAT scores with fixed coefficient on x1 and random coefficient on x2 at the school level and with random intercepts at both the school and class-within-school level, you type

 	. xtmixed sat x1 x2 || school: x2 || class:

Estimation is either by ML or by REML, and standard errors and confidence intervals (in fact, the full covariance matrix) are estimated for all variance components.

xtmixed provides four random-effects variance structures—identity, independent, exchangeable, and unstructured—and you can combine them to form even more complex block-diagonal structures.

After estimation, you can obtain best linear unbiased predictions (BLUPs) of random effects, their standard errors, their conditional means (fitted values), and other diagnostic measures.

For details, see [XT] xtmixed.

After estimation with xtmixed,

• estat recovariance reports the estimated variance–covariance matrix of the random effects for each level.
• estat group summarizes the composition of the nested groups, providing minimum, average, and maximum group size for each level in the model.

  predict after xtmixed can compute best linear unbiased predictions (BLUPs) for each random effect and its standard error. It can also compute the linear predictor, the standard error of the linear predictor, the fitted values (linear predictor plus contributions of random effects), the residuals, and the standardized residuals.

Examples

Here are some examples from the xtmixed manual entry.

Example 1: Two-level model, random intercept

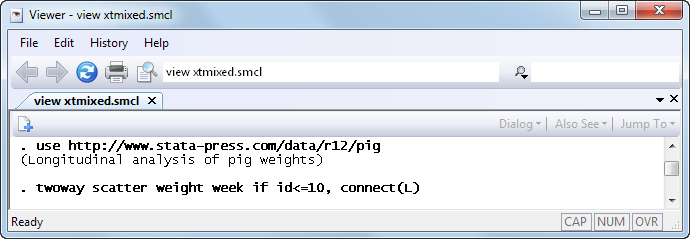

Consider a longitudinal dataset used by both Ruppert, Wand, and Carroll (2003) and Diggle et al. (2002), consisting of weight measurements of 48 pigs on nine successive weeks. Pigs are identified by variable id. Below is a plot of the growth curves for the first ten pigs.

It seems clear that each pig experiences a linear trend in growth and that overall weight measurements vary from pig to pig. Because we are not really interested in these particular 48 pigs per se, we instead treat them as a random sample from a larger population and model the between-pig variability as a random effect or, equivalently, as a random-intercept term at the pig level. We thus wish to fit the following model

          weight_ij = b_0 + b_1 week_ij + u_j + e_ij                 (3)

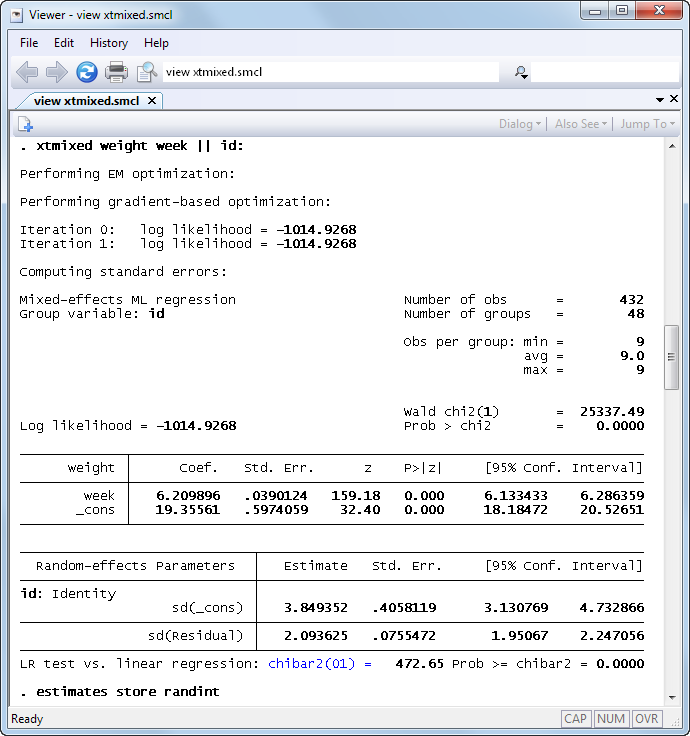

for i = 1,...,9 and j = 1,...,48. The fixed portion of the model, b_0 + b_1*week_ij, simply states that we want one overall regression line representing the population average. The random effect u_j serves to shift this regression line up or down for each pig. Because the random effects occur at the pig-level, we fit the model by typing

At this point, a guided tour of the model specification and output is in order:

1. By typing weight week we specified the response, weight, and the fixed portion of the model in the same way we would if we were using regress or any other estimation command. Our fixed effects are a coefficient on week and a constant term.
2. When we added “|| id:”, we specified random effects at the level identified by group variable id, i.e., the pig-level. Because we only wanted a random intercept, that is all we had to type.
3. The output title informs us that our model was fitted using ML, the default. For REML estimates, use option reml. Because this model is a simple random-intercept model, our results are equivalent to using xtreg, also with option mle.
4. The first estimation table is for the fixed effects. We estimate b_0 = 19.36 and b_1 = 6.21.
5. The second estimation table shows the estimated variance components. The first section of the table is labeled “id: Identity”, meaning that these are random effects at the id (pig) level and that their variance–covariance matrix is a multiple of the identity matrix. Because we only have one random effect at this level, xtmixed knew that Identity is the only possible covariance structure. In any case, the standard deviation of the level-two errors, sigma_u, is estimated as 3.85 with standard error 0.406.

   If you prefer variance estimates, e.g., sigma^2_u, to standard deviation estimates, sigma_u, then specify the variance option either at estimation or on replay.
6. The row labeled “sd(Residual)” displays the estimated standard deviation of the overall error term, i.e., sigma_e = 2.09.
7. Finally, a likelihood-ratio test comparing the model to ordinary linear regression is provided and is highly significant for these data.

Example 2: Two-level model, random coefficient

Extending (3) to also allow for a random slope on week yields the model

        weight_ij = b_0 + b_1 week_ij + u_oj + u_1j week_ij + e_ij   (4)

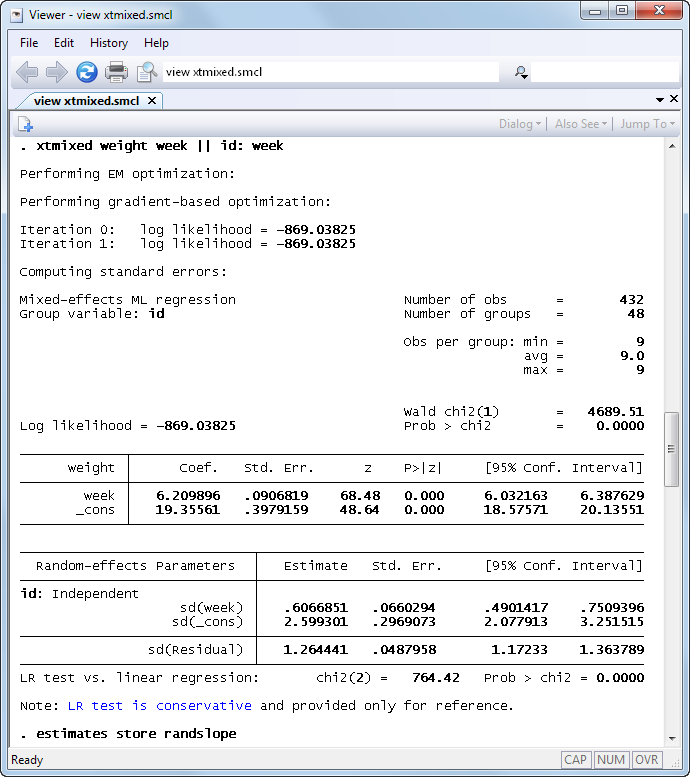

fitted using xtmixed.

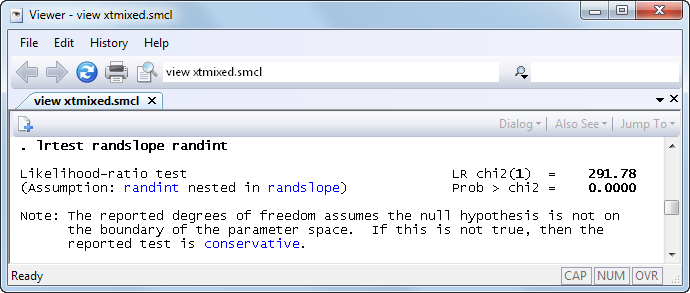

Because we did not specify a covariance structure for the random effects (u_0j, u_1j), xtmixed used the default Independent structure and estimated sigma_u0 = 2.60 and sigma_u1 = 0.61. Our point estimates of the fixed effects are, for all intents and purposes, identical, but this does not hold generally. Given the 95% confidence interval for sigma_u1, it would seem that the random slope is significant, and we can use lrtest to verify this fact:

Example 3: Three-level model

Baltagi, Song, and Jung (2001) estimate a Cobb–Douglas production function examining the productivity of public capital in each state’s private output. Originally provided by Munnell (1990), the data were recorded over the period 1970–1986 for 48 states grouped into nine regions.

Because the states are nested within regions, we fit a two-level mixed model with random intercepts at both the region and at the state-within-region levels.

Some items of note:

1. This is a three-level model, with the observations level one, the states level two, and the regions level three.
2. Our model now has two random-effects equations, separated by ||. The first is a random intercept (constant-only) at the region level, the second a random intercept at the state level. The order in which these are specified (from left to right) is significant—xtmixed assumes that state is nested within region.
3. The variance component estimates are now organized and labeled according to level. After adjusting for the nested-level error structure, we find that the highway and water components of public capital had significant positive effects upon private output while the other public buildings component had a negative effect.

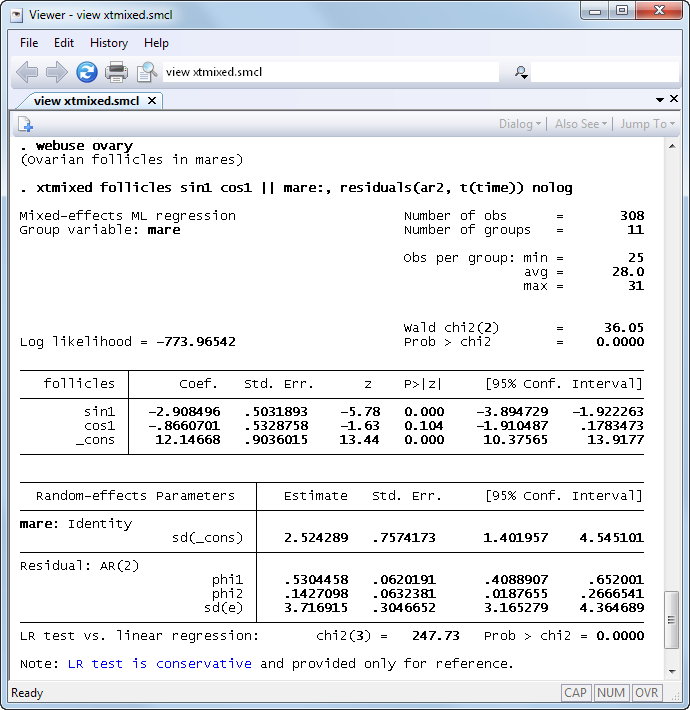

xtmixed also allows you to model the correlation structure of the level one residuals. Pierson and Ginther (1987) analyzed data from the estrus cycles of mares, whose number of ovarian follicles larger than 10mm was measured daily. Because of the daily nature of the data, an autoregressive residual-error structure could be appropriate:

Besides autoregressive (AR), other available residual structures are moving average (MA), unstructured, banded, exponential, exchangeable, and Toeplitz.

Finally, xtmixed can also be used with survey data; see Multilevel models with survey data for more information.

References

Baltagi, B. H., S. H. Song, and B. C. Jung. 2001.

Journal of Econometrics 101: 357–381.

Diggle, P. J., P. Heagerty, K.-Y. Liang, and S. L. Zeger. 2002.

Analysis of Longitudinal Data. 2nd edition. Oxford: Oxford University Press.

Munnell, A. 1990.

Why has productivity growth declined? Productivity and public investment.

New England Economic Review. Jan. / Feb.:3–22.

Pierson, R. A., and O. J. Ginther. 1987.

Follicular population dynamics during the estrous cycle of the mare. Animal Reproduction Science 14: 219–231.

Ruppert, D., M. P. Wand, and R. J. Carroll. 2003.

Semiparametric Regression. Cambridge: Cambridge University Press.
