Linear regression and influence

Under the heading least squares, Stata can fit ordinary regression models, instrumental variable models, constrained linear regression, nonlinear least squares, and two-stage least-squares models. (Stata can also fit quantile regression models, which include median regression or minimization of the absolute sums of the residuals.)

After fitting a linear regression model, Stata can calculate predictions, residuals, standardized residuals, and studentized (jackknifed) residuals; the standard error of the forecast, prediction, and residuals; the influence measures Cook’s distance, COVRATIO, DFBETAs, DFITS, leverage, and Welsch’s distance; variance-inflation factors; specification tests; and tests for heteroskedasticity.

Among the fit diagnostic tools are added-variable plots (also known as partial-regression leverage plots, partial regression plots, or adjusted partial residual plots), component-plus-residual plots (also known as augmented partial residual plots), leverage-versus-squared-residual plots (or L-R plots), residual-versus-fitted plots, and residual-versus-predictor plots (or independent variable plots). Each tool is available by typing one command.

For example, let’s start with a dataset that contains the price, weight, mpg, and origin (foreign or U.S.) for 74 cars:

. webuse auto
(1978 Automobile Data)

. regress price weight foreign##c.mpg

      Source |       SS       df       MS              Number of obs =      74
-------------+------------------------------           F(  4,    69) =   21.22
       Model |   350319665     4  87579916.3           Prob > F      =  0.0000
    Residual |   284745731    69  4126749.72           R-squared     =  0.5516
-------------+------------------------------           Adj R-squared =  0.5256
       Total |   635065396    73  8699525.97           Root MSE      =  2031.4

------------------------------------------------------------------------------
       price |      Coef.   Std. Err.      t    P>|t|     [95% Conf. Interval]
-------------+----------------------------------------------------------------
      weight |   4.613589   .7254961     6.36   0.000     3.166263    6.060914
   1.foreign |   11240.33   2751.681     4.08   0.000     5750.878    16729.78
         mpg |   263.1875   110.7961     2.38   0.020     42.15527    484.2197
             |
     foreign#|
       c.mpg |
          1  |  -307.2166   108.5307    -2.83   0.006    -523.7294   -90.70368
             |
       _cons |  -14449.58    4425.72    -3.26   0.002    -23278.65    -5620.51
------------------------------------------------------------------------------

We have used factor variables in the above example. The term foreign##c.mpg specifies to include a full factorial of the variables—main effects for each variable and an interaction. The c. just says that mpg is continuous. regress is Stata’s linear regression command. All estimation commands have the same syntax: the name of the dependent variable followed by the names of the independent variables. After estimation, we can review diagnostic plots:

    . rvfplot, yline(0)

Typing rvfplot displays a residual-versus-fitted plot, although we created the graph above by typing rvfplot, yline(0); this drew a line across the graph at 0. That you can discern a pattern indicates that our model has problems.

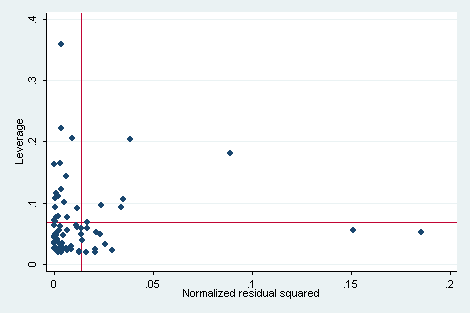

Here is how we obtain a leverage plot:

 . lvr2plot

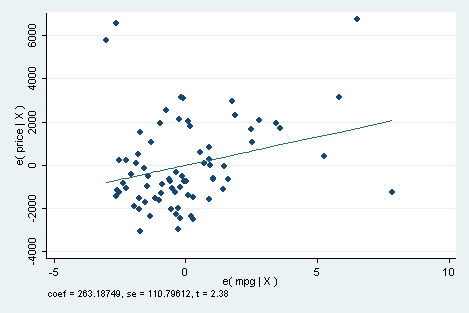

avplot draws added-variable plots, both for variables currently in the model and variables not yet in the model:

    . avplot mpg

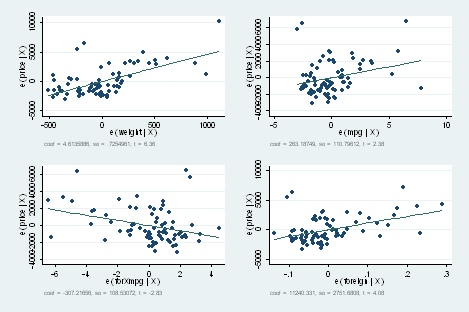

Added-variable plots are so useful that they are worth reviewing for every variable in the model:

    . avplots

The graph above is one Stata image and was created by typing avplots. The combined graph is useful because we have only four variables in our model, although Stata would draw the graph even if we had 798 variables in our model. The individual graphs would, however, be too small to be useful. That is why there is an avplot command.

Exploring the influence of observations in other ways is equally easy. For instance, we could obtain a new variable called cook containing Cook’s distance and then list suspicious observations by typing

. predict cook, cooksd, if e(sample)

. predict e if e(sample), resid

. list make price e cook if cook>4/74

     +--------------------------------------------------+
     | make                price           e       cook |
     |--------------------------------------------------|
 12. | Cad. Eldorado      14,500     7271.96   .1492676 |
 13. | Cad. Seville       15,906    5036.348   .3328515 |
 24. | Ford Fiesta         4,389    3164.872   .0638815 |
 28. | Linc. Versailles   13,466    6560.912   .1308004 |
 42. | Plym. Arrow         4,647   -3312.968   .1700736 |
     +--------------------------------------------------+

We could obtain all the DFBETAs and then list the four observations having the most negative influence on the foreign coefficient and the four observations having the most positive influence by typing

. dfbeta
                       _dfbeta_1: dfbeta(weight)
                       _dfbeta_2: dfbeta(1.foreign)
                       _dfbeta_3: dfbeta(mpg)
                       _dfbeta_4: dfbeta(1.foreign#c.mpg)

. sort _dfbeta_2

. list make price foreign _dfbeta_2 in 1/4

     +--------------------------------------------------+
     | make                price    foreign   _dfbeta_2 |
     |--------------------------------------------------|
  1. | Plym. Arrow         4,647   Domestic   -.6622424 |
  2. | Cad. Eldorado      14,500   Domestic   -.5290519 |
  3. | Linc. Versailles   13,466   Domestic   -.5283729 |
  4. | Toyota Corona       5,719    Foreign    -.256431 |
     +--------------------------------------------------+

. list make price foreign _dfbeta_2 in -4/l

     +---------------------------------------------+
     | make            price    foreign   _dfbet~2 |
     |---------------------------------------------|
 71. | Volvo 260      11,995    Foreign   .2318289 |
 72. | Plym. Champ     4,425   Domestic   .2371104 |
 73. | Peugeot 604    12,990    Foreign   .2552032 |
 74. | Cad. Seville   15,906   Domestic   .8243419 |
     +---------------------------------------------+
